Panoplia Preprocessor

PANOPLIA Preprocessor is part of a sophisticated software system intended for the design and analysis of earthquake resistant reinforced concrete buildings, called PANOPLIA.

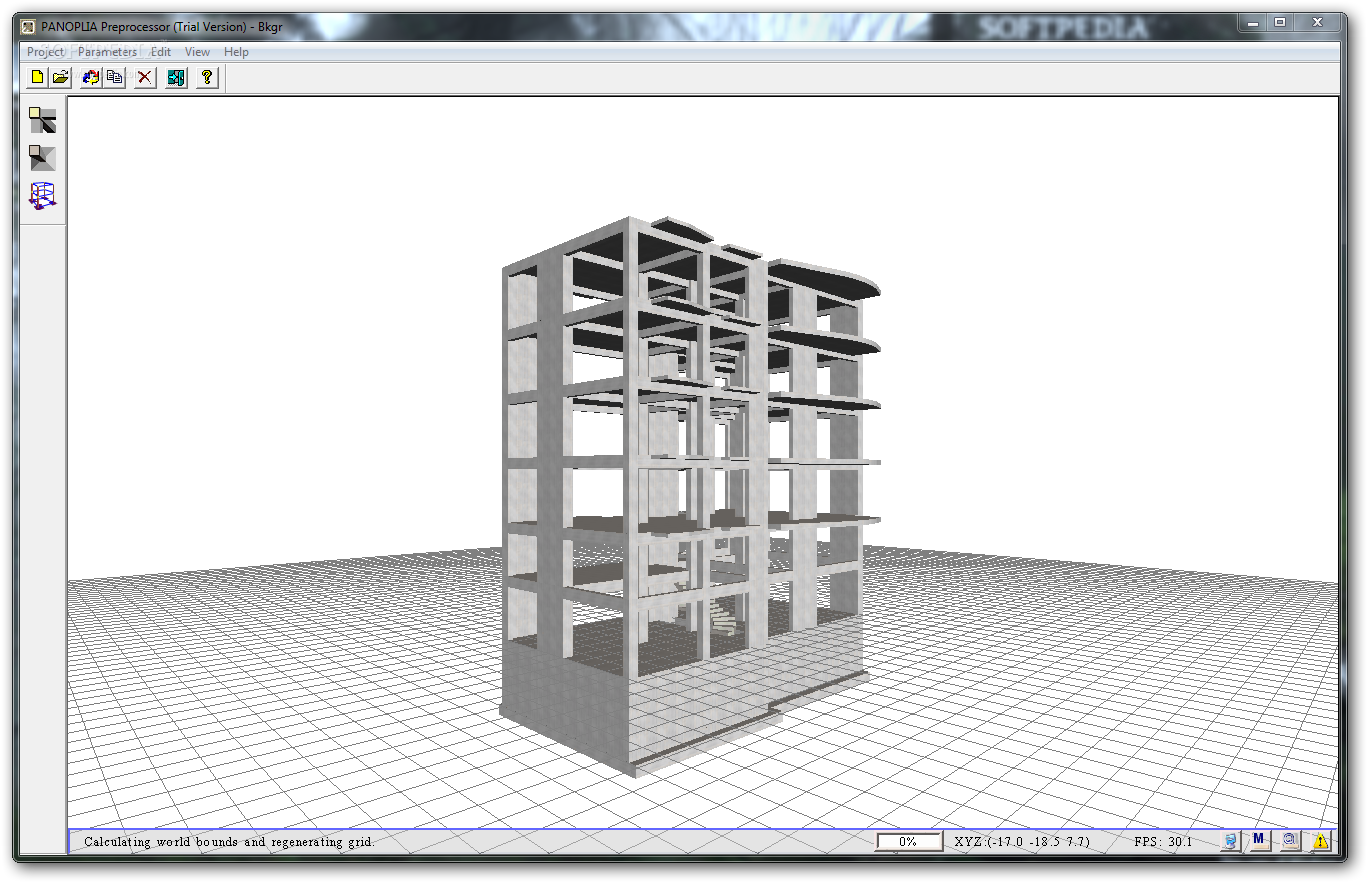

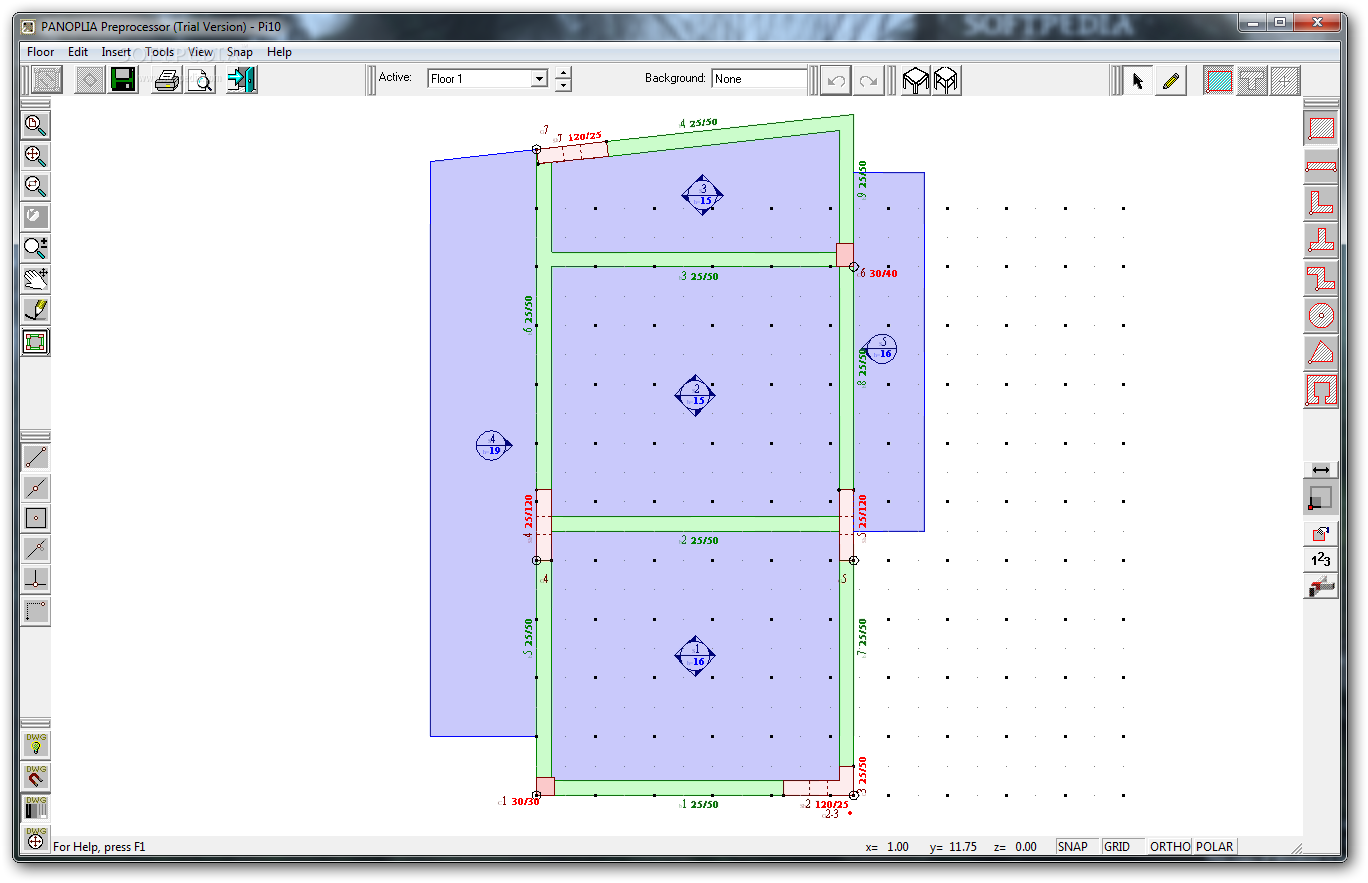

PANOPLIA Preprocessor is a handy and reliable application where users have the appropriate tools to model a buildings framework in an intuitive environmentalong with the means to visualize the resulting buildings frame.
Since the description of a complicated building is a time consuming and sometimes frustrating procedure, it is quite clear that PANOPLIA preprocessor offers a competitive advantage, due to its intelligent and holistic approach to the description process that treats structural elements as dynamic entities that interact and connect to each other in order to create the uniform frame of the building.

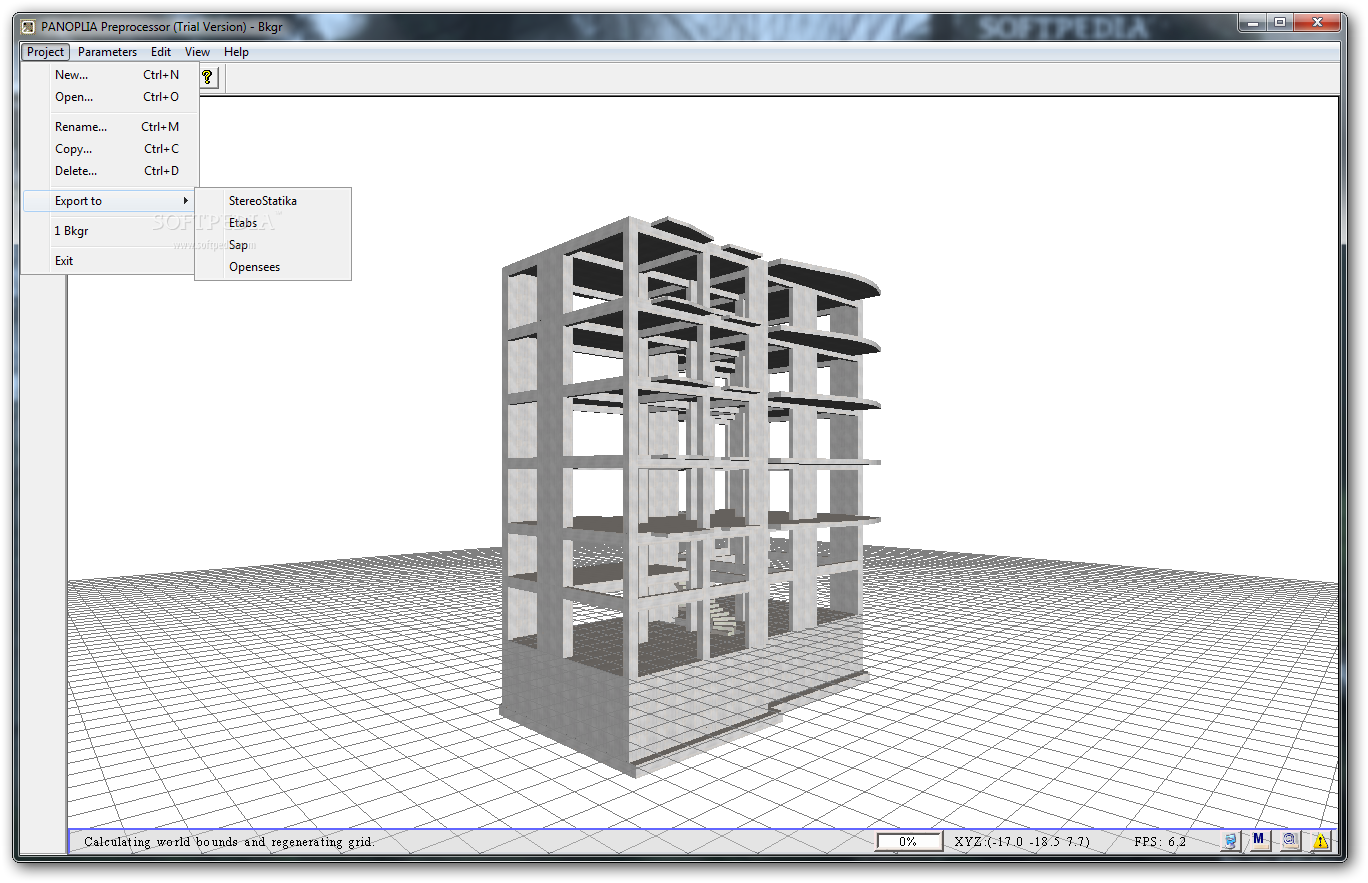

The resulting model of the building may be easily exported to a number of appropriate applications for further static and dynamic analysis.System requirements1GB Ram
1024 x 768 16bit - Nvidia Geforce 4
ATI 9000 64MB or greater
Internet Connection
Limitations in the unregistered version30 days trial
The software does not support shear walls and composite elements.
The software does not support foundation export.
The software supports slabs (diaphragms), beams and orthogonal columns.
Nag screen
