Parametric 3D Pressure Vessel for AutoCAD

Name: Parametric 3D Pressure Vessel for AutoCAD
Works on: windows

Windows 7 and above

Developer: FMSoft

Version: 1
Last Updated: 03 Apr 2017
Release: 17 Sep 2014
Category: Science CAD

Rate this software:
1626 downloads

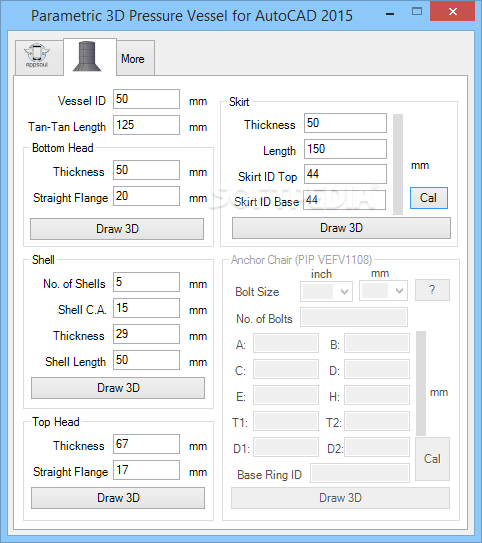

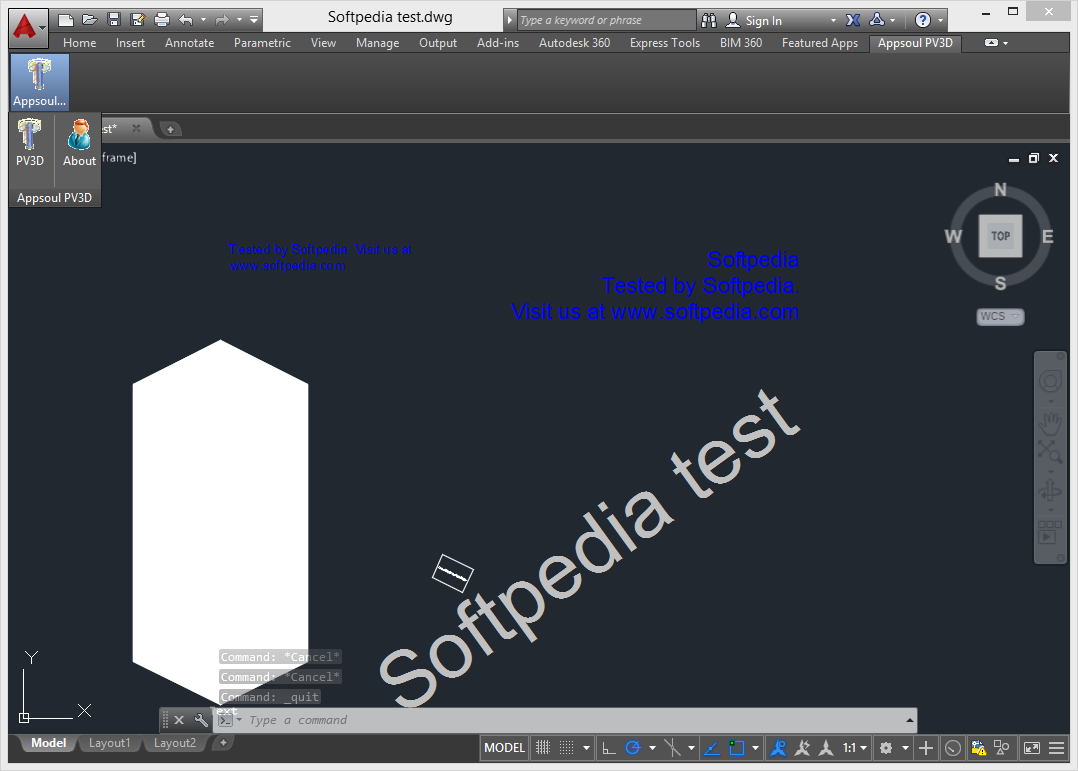

View Screenshots(2)

Comments

Download

Liked it? Tell others:

Parametric 3D Pressure Vessel for AutoCAD Tags

pressure vessel designer AutoCAD plugin 3D vessel model pressure vessel AutoCAD plugin 3D vessel

Parametric 3D Pressure Vessel for AutoCAD Details

Works on: Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows 2012
SHA1 Hash: abf2638241a211ff542532773b7e893040eb0619
Size: 1.02 MB
File Format: zip

Rating: 2.086956521 out of 5 based on 23 user ratings

Publisher Website: External Link
Downloads: 1626
License: Demo / Trial Version

Parametric 3D Pressure Vessel for AutoCAD is a demo software by FMSoft and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows 2012.
You can download Parametric 3D Pressure Vessel for AutoCAD which is 1.02 MB in size and belongs to the software category Science CAD.
Parametric 3D Pressure Vessel for AutoCAD was released on 2014-09-17 and last updated on our database on 2017-04-03 and is currently at version 1.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

Parametric 3D Pressure Vessel for AutoCAD Description

Creates 2:1 Ellipsoidal Head and Hemispherical Head
Creates any number of cylindrical shell courses
Creates skirt conical or cylindrical
Creates skirt anchor chair as per Process Industry Practices PIP
VEFV1108 or user can input custom dimensions
Creates Nozzle Necks using standard Pipe or from plate fabricated.
Creates Radial nozzles with or without reinforcement pad on shell courses at any elevation or orientation
Creates offset or Hillside nozzles with or without reinforcement pad on Heads at any orientation.
Adds ASME B16.5 Weldneck, Slip-on, Long Weldneck and Blind flanges to any nozzle upto 24 inch size.
Adds ASME B16.47 Series A or Series B Weldneck and Blind flanges to any nozzle greater than 24 inch size upto 60 inch.
Adds ANSI Spiral Wound Gaskets or ANSI Flat CAF Gaskets for ASME B16.5 flanges
Adds ANSI Spiral Wound Gaskets for ASME B16.47 Series A flanges
Adds ANSI Spiral Wound Gaskets or ANSI Flat CAF Gaskets for ASME B16.47 Series B flanges
Calculates weight of pressure vessel main components (Heads, shells, skirt)
Calculates weight of nozzle assembly for each nozzle (Nozzle Neck, Reinforcement pad, flange, blind flange, gasket, flange bolts and nuts)
Calculates Head Blank Size Diameter and Shell development or unfold length
Creates Bill of Materials (BOM) for Vessel main components and Nozzles
