STEP Import for Bricscad

STEP Import for Bricscad is a STEP file import plug-in for Bricscad® powered application. This plug-in gives Bricscad the ability to import geometric data from STEP files.
The STEP file format is widely used to exchange 3D data between different CAD systems. STEP files contain 3D geometry data of solid models. STEP Import for Bricscad reads the 3D geometry data from STEP files and creates 3D curve objects corresponding to each edge in the solid model. These 3D curves are added to the current Bricscad drawing, thereby yielding the wireframe geometry of the solid in the STEP file.

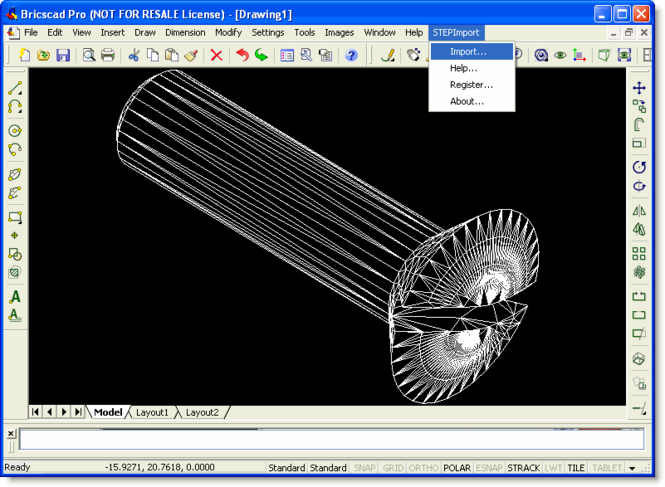

STEP Import for Bricscad is very easy to use. Once installed, it must be loaded into the Bricscad environment. Follow the simple instructions in the ReadMe document which can be found in the installation folder. Once loaded it adds new commands to Bricscad's existing commands and a new submenu called "STEPImport" to the Bricscad menu containing these newly added commands.
STEPImport - Imports a STEP file
STEPImportHelp - Displays the STEP Import for Bricscad help file
STEPImportRegister - Register your copy of STEP Import for Bricscad
The STEP File Format
ISO 10303 is an ISO standard for the computer-interpretable representation and exchange of industrial product data. Its official title is Industrial automation systems and integration - Product data representation and exchange, and it is also known as STEP or the Standard for the Exchange of Product model data. The standard's objective is to provide a mechanism that is capable of describing product data throughout the life cycle of a product, independent from any particular system. The nature of this description makes it suitable not only for neutral file exchange, but also as a basis for implementing and sharing product databases and archiving.
