TopSpice

Name: TopSpice
Works on: windows

Windows XP and above

Version: 8.69
Last Updated: 24 Apr 2017
Release: 29 Mar 2017
Category: Science CAD

Rate this software:
3456 downloads

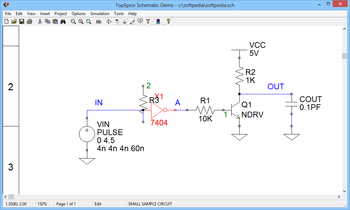

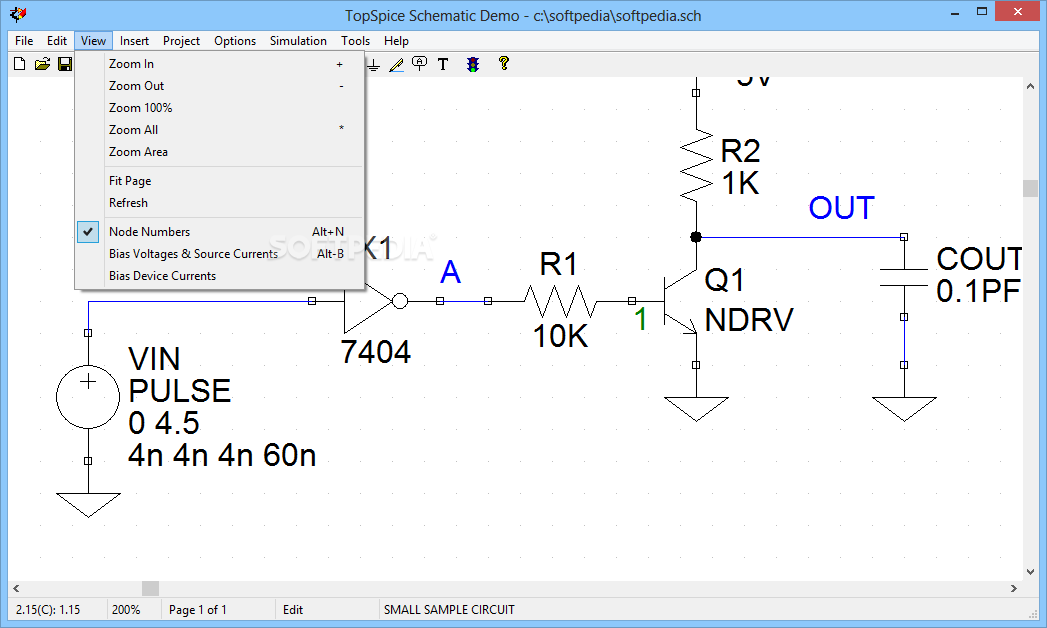

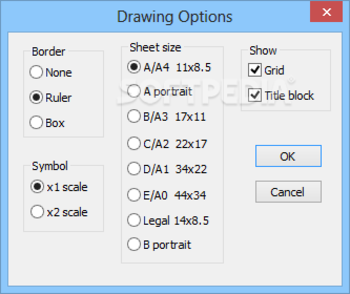

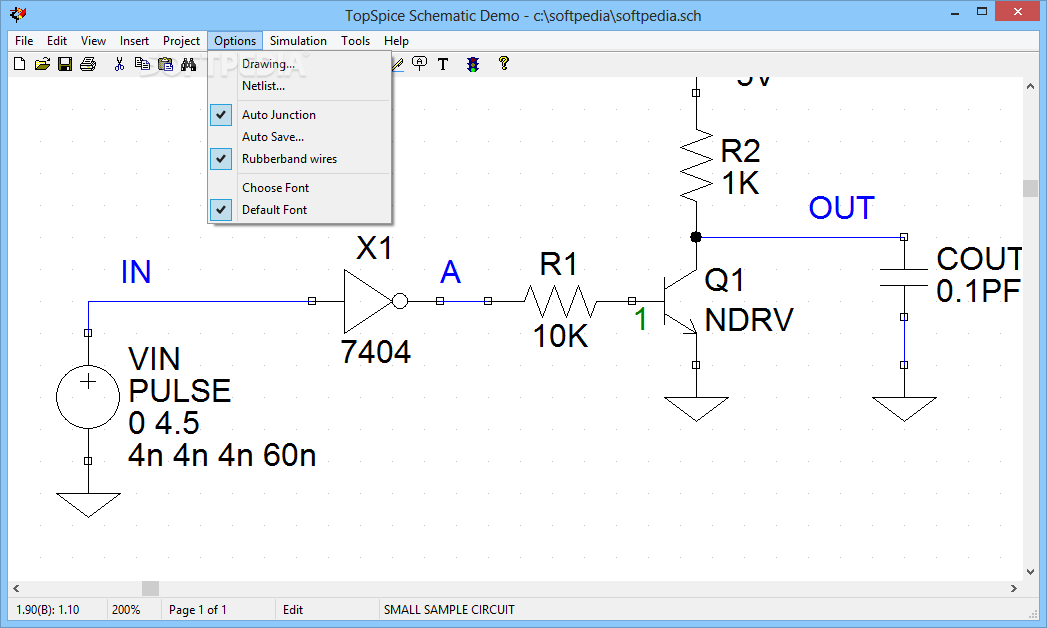

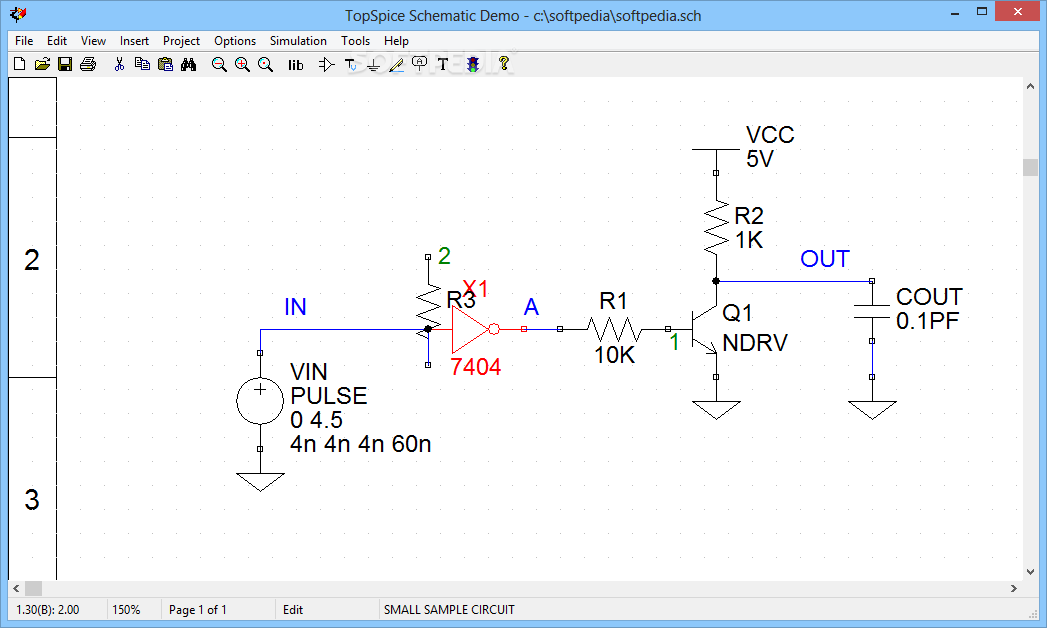

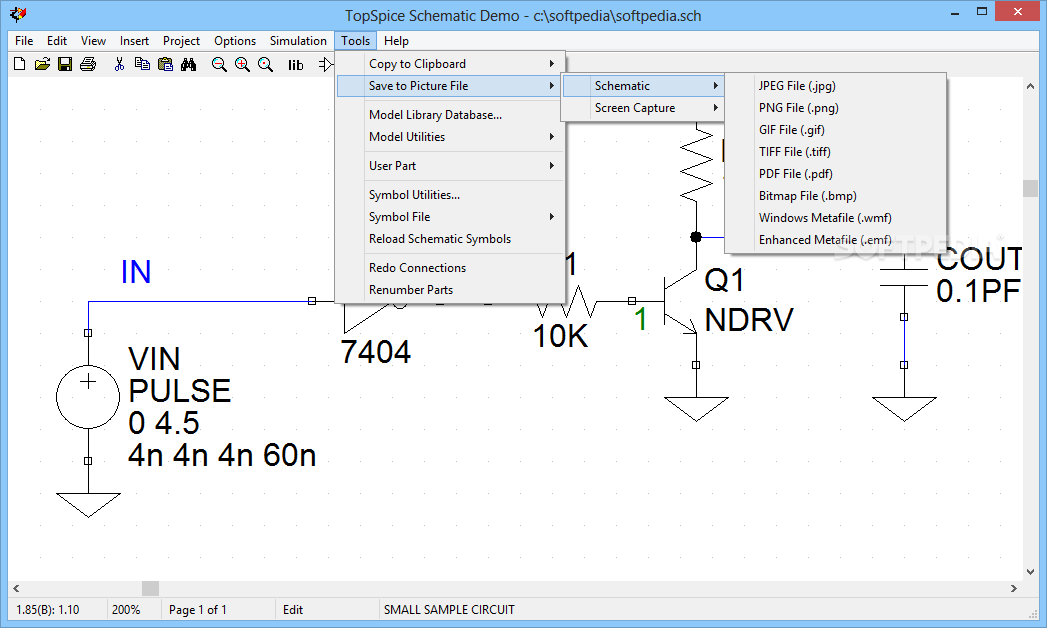

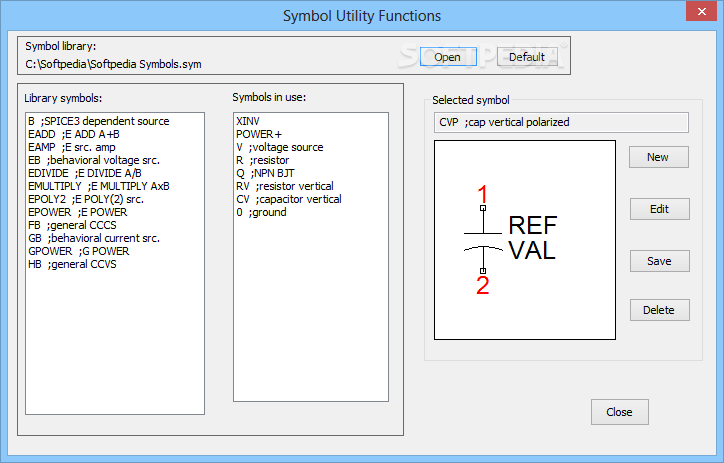

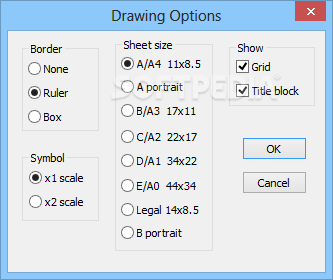

View Screenshots(13)

Comments

Download

Liked it? Tell others:

TopSpice Tags

circuit simulator simulate circuit circuit editor circuit resistor diode electricity

TopSpice Details

Rating: 2.695652173 out of 5 based on 23 user ratings

Publisher Website: External Link
Downloads: 3456
License: Demo / Trial Version

TopSpice is a demo software by Penzar Development and works on Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP, Windows 2000, Windows 2003, Windows 2008, Windows Vista, Windows 2012.
You can download TopSpice which is 27.45 MB in size and belongs to the software category Science CAD.
TopSpice was released on 2017-03-29 and last updated on our database on 2017-04-24 and is currently at version 8.69.

Thank you for downloading from SoftPaz! Your download should start any moment now. It would be great if you could rate and share:

Rate this software:
Share in your network:

TopSpice Description

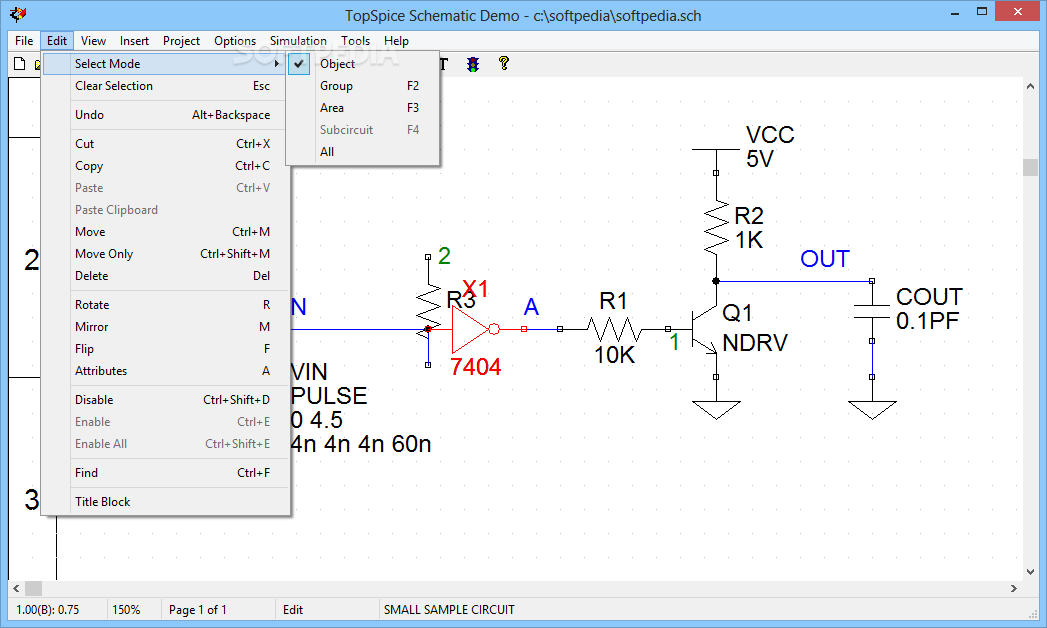

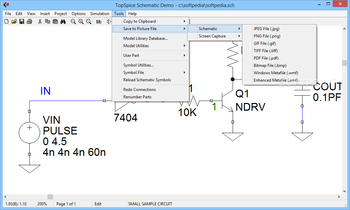

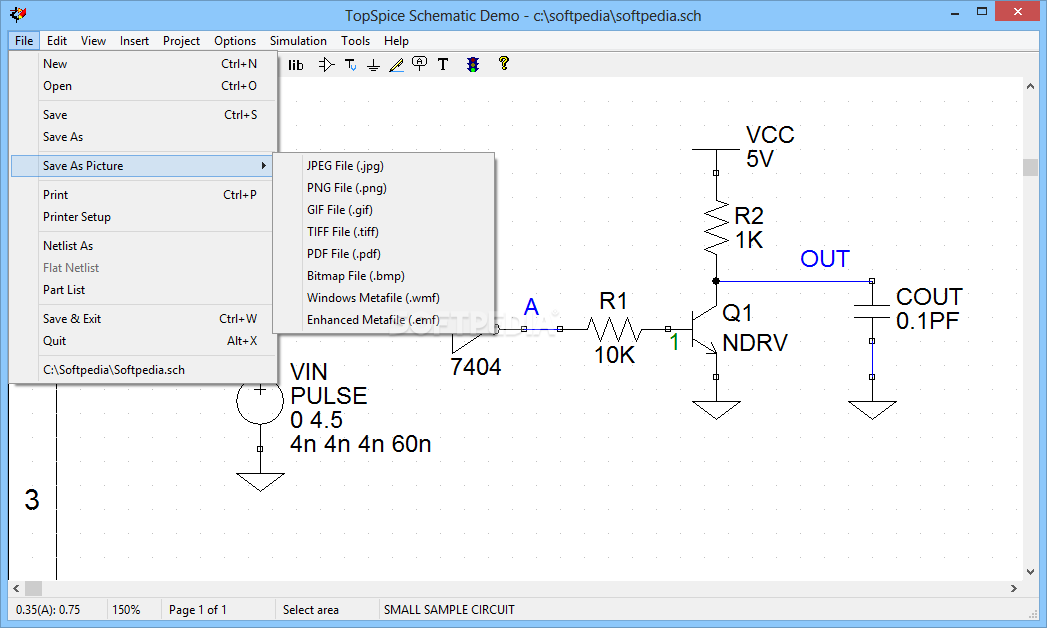

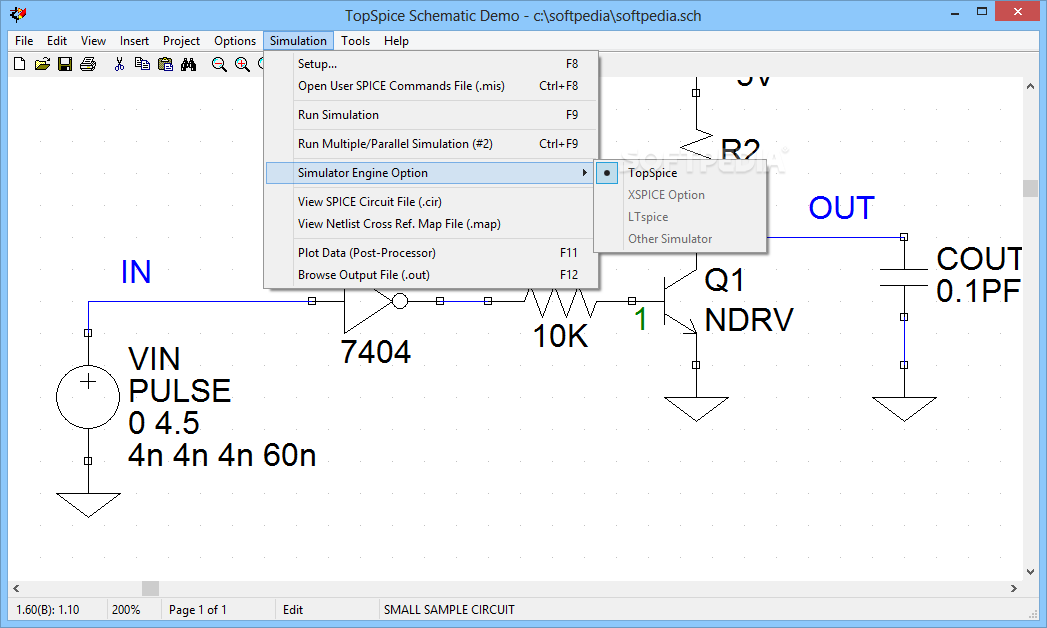

Integrated design enviroment with schematic capture, simulation, waveform plotting and post-processor
Native mixed-mode mixed-signal simulation
Built-in event-driven logic simulator
Simulator supports large circuit sizes (up to available system resources)
Multiple/parallel simulation runs for the same circuit
Built-in device models: diode (levels 1 and 3), BJT (levels 1 and 4), MOSFET (levels 1, 2, 3, 7, 8, 44, 49, 53, 55), JFET, GaAs FET (levels 1, 2, 3, 6), MESFET, nonlinear magnetic core, ferroelectric capacitor, switch, lossy transmission line and digital primitives
Extensive model libraries of over 30,000 analog and digital components
Compatible with most PSpice netlists and manufacturer SPICE model libraries
IC foundry HSPICE model library support*
SMPS design model libraries
HSPICE compatible MOSFET "model binning"
Analog behavioral and frequency domain modeling

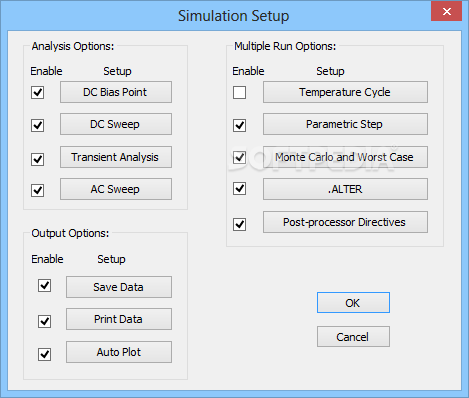

Analyses: bias point, DC sweep, transient, AC sweep, noise, distortion, sensitivity, transfer function, Fourier, temperature, Monte Carlo, worst case, parametric stepping, "alter" circuit
Advanced noise analysis functions
Interactive graphical post-processor with "auto plot"
Waveform expression plots
Powerful waveform, performance and statistical analysis functions
All design and simulation functions are available from either the schematic or netlist editor front-ends
