Show Traffic

The Ethernet adapter is the front entrance of information from the Internet. Sure enough, it’s guarded by any security application you may have installed, but malicious content can still find ways to get in. As such, you might want to use solutions like Show Traffic to keep an eye on everything that’s coming in and going out.

Quick setup and intuitive design

It doesn’t take long for the application to get installed on your computer and become ready for use. However, it completely relies on WinPcap, and won’t actually run without it, so you need to make sure it is deployed as well. Luckily, it’s included in the setup package, and you can choose whether or not to install it along with the main component files.

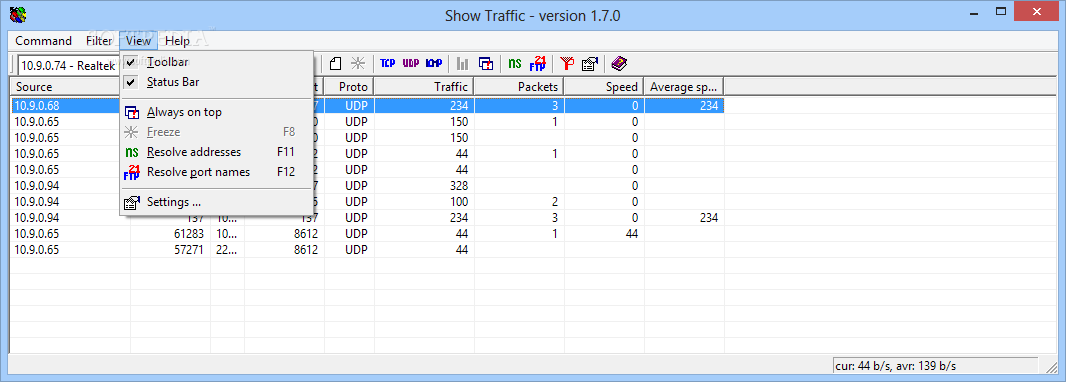

On the visual side of things, Show Traffic stores all of its features in a classic window frame, with most of the space used to show connections along with different details, and an upper toolbar that holds all functions, commands, and view options. This simplicity makes it incredibly easy to use, even by inexperienced individuals.

Apply filters and configure logs

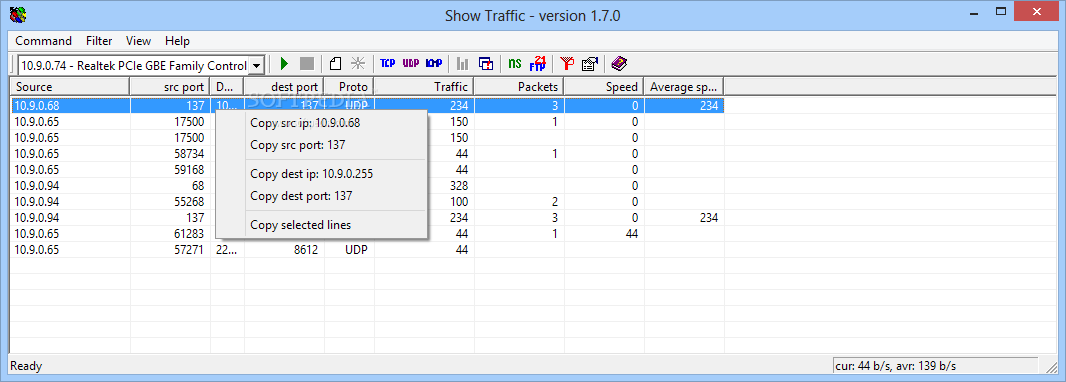

First of all, you need to select the adapter you want to keep under close watch, and this is easily done by choosing it from the dedicated drop-down menu. Pressing start automatically starts sniffing all incoming and outgoing data packages, showing them in real time, with corresponding details like source IP, source port, destination IP, destination port, type of port used, traffic in bytes, packets, speed, and average speed. There’s also the possibility to filter according to column headers.

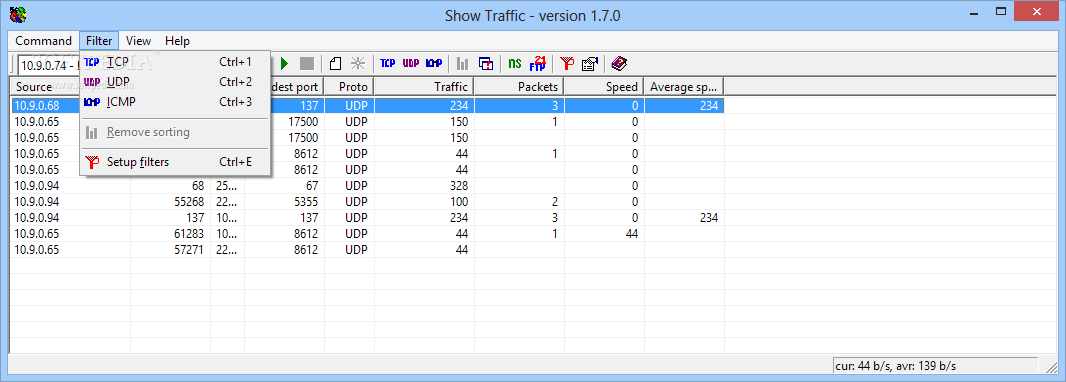

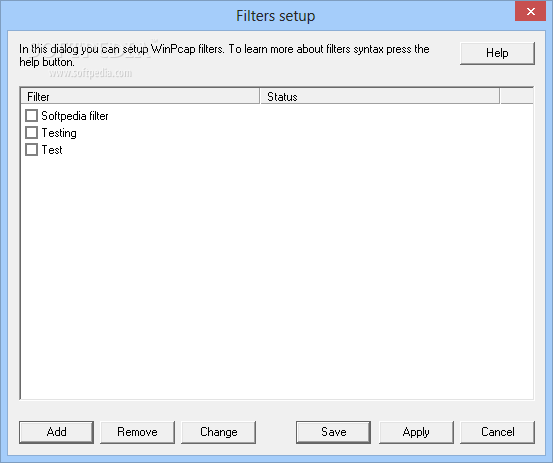

More filter options can be triggered at the press of a button, such as eliminating TCP, UDP, or ICMP ports, but this is best done when the process is idle, because it can result in a crash. Additionally, you can set up WinPcap filters from a separate dialog by writing down parameters of interest.

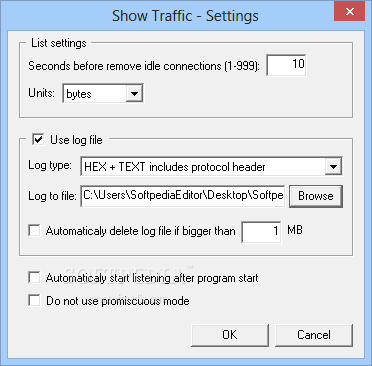

After a short while of using it, you might notice the list getting smaller, but this is only because the default configuration dumps connections that are idle for more than ten seconds. This can be configured from the settings menu, where you also get to specify a file to save log to, and whether or not Show Traffic should start with Windows.

To sum it up

On an ending note, Show Traffic lives up to expectations by putting an intuitive workspace at your disposal that’s easy to figure out even by inexperienced individuals, with quick setup, and real time feedback. Different filters can be used so you only get data of interest. Save all info to a log file automatically, and you can then spend time to analyze.
