Digital Circuit Educational Simulator Description
Digital Circuit Educational Simulator is a Java-based software application whose purpose is to help you create and simulate digital circuits.
Portable running mode
The utility can be stored on USB flash drives. Plus, you can open it without administrative privileges on the target computer. Gaining access to the program’s interface requires only running the executable files. It does not leave entries in your registry so a simple deletion task is sufficient for getting rid of it.
Intuitive design
Thanks to the well-structured suite of features, it proves to be really easy to set the ground for a new circuit. You can save projects to a file on your computer so you can quickly import them in the future.
Create new circuits

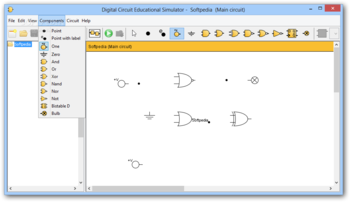

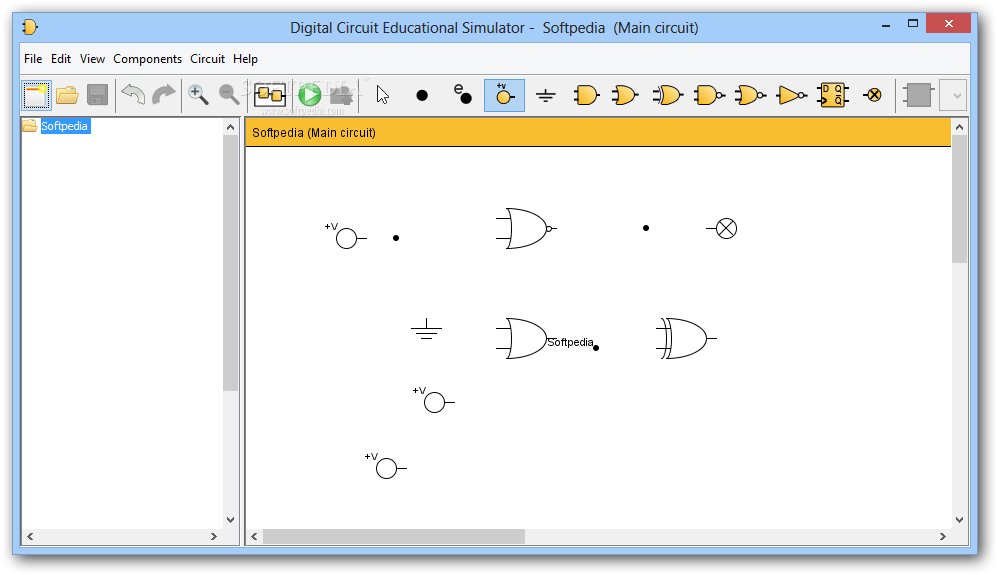

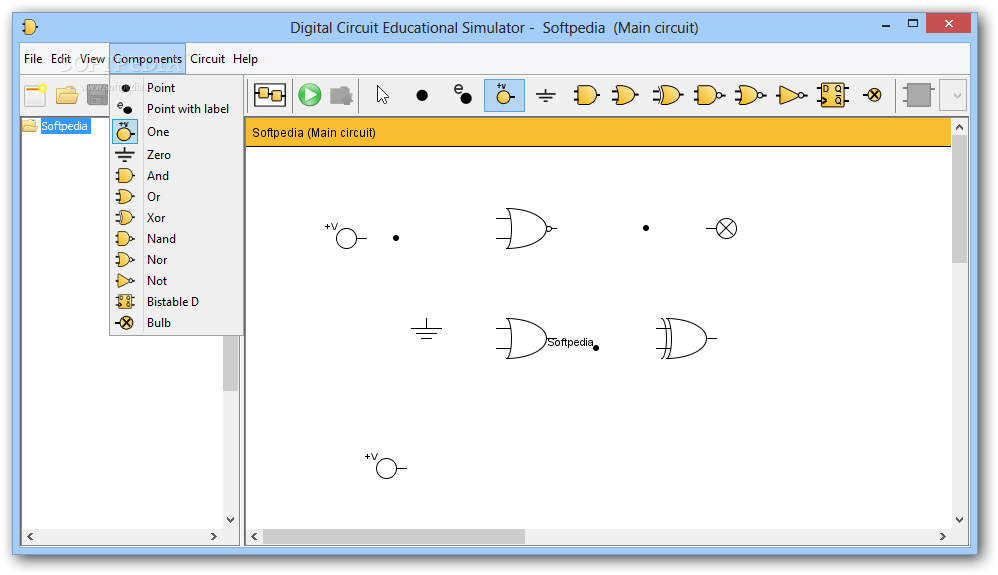

You can design a digital circuit by adding all sorts of components in the workspace, such as connection point, connection point with label, logic gate, and bulb. You can drag and drop the objects to the desired position, copy, paste, delete, or rotate them, as well as undo or redo your actions.

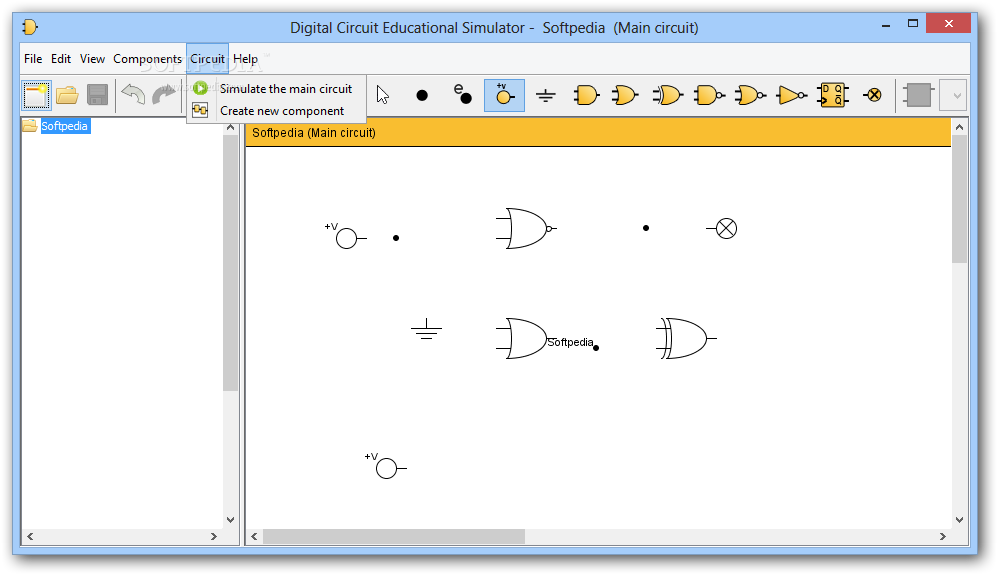

What’s more, Digital Circuit Educational Simulator lets you zoom in or out of the circuit, show or hide a grid in the background, enable antialiasing, and simulate the current circuit.
Last but not least, you are given the freedom to export the design to SWF file format or print data, compress the current project to ZIP archives, set simulation colors, and define your own component.
Digital Circuit Educational Simulator eats up from minimal up to moderate amount of system resources so the overall performance of the computer is not hampered.
Conclusion
Digital Circuit Educational Simulator provides nothing more than basic tools for allowing you to simulate circuits in a virtual environment, and is suitable especially for less experienced users.
